AR32, SAR132 Roller Shutters

Typically used to secure most commercial applications. They are ideal for securing schools, sporting pavilions, hospitals, shop fronts, entrances and alcoves, kiosks, storage areas and shelving and serveries.

Adapting this shutter system to domestic applications allows the homeowner to cover very large window, doorway, pergola and verandah openings using one shutter, alleviating the unsightly need for centre mullions.

Technical Specifications

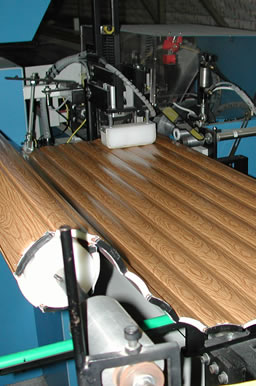

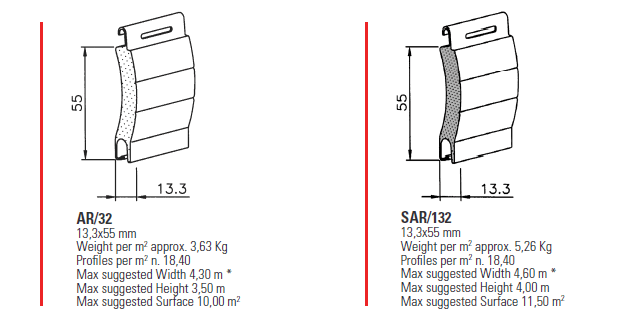

AR32 & SAR132 profiles have a face depth of 55mm x 13.3mm curved blades and are constructed from roll formed aluminium slats with an upper double folded lip (for extra strength) which forms a continuous hinge. Each slat (shutter curtain) is fitted with specially moulded end clips, which prevents lateral movement offering a smooth and quiet operation.

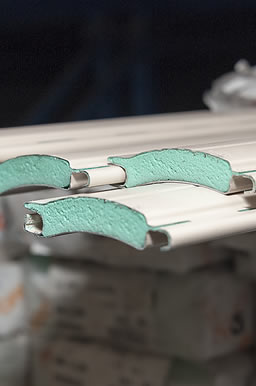

Each slat is coated with a fade and abrasive resistant enamel and injected with a polyurethane core. The SAR132 has the added feature of the high density core.

Ventilation & Light Control:
AR32, SAR132 security roller shutters are pierced during the production stage with oval slots designed to allow airflow and natural light into the designated area. atmosphere.

Side Guides:
Choices of 53mm x 21mm, 62mm x 25mm or 70mm x 22mm extruded aluminium section for Compact German Box installations.

Both tracks have a hollow section for concealing fixings.
Both tracks are fitted with a nylofelt buffer for a quiet and smooth operation.
Both tracks allow a shutter penetration of up to 40mm deep for improved security.

Constructed of a 60mm, 70mm or up to 102mm galvanised axle or a 60mm aluminium axle..

Bottom Rail:
Constructed of a 40mm, 60mm or 70mm galvanised axle or a 60mm aluminium axle.

Specially designed security springs connect the top slat to the axle. When the security roller shutter has been activated fully in its down position, these clever springs will throw the top of the roller shutter into the back of the pelmet box if someone were to try and lift the shutter from the outside.

25mm x 3mm steel flat bars are housed inside an extruded aluminium section across the entire width of the shutter, anchoring deep into the side guides when activated. The locking mechanism is controlled by a two-way, double turn mortice lock that is positioned at the base of the roller shutter.

Can be used on almost any size security roller shutter opening and recommended on larger openings. Space saving direct drive tubular motors (slide into the axle) can be controlled by a toggle switch, key switch or remote control.

Multiple Roller Shutters can be operated by a single remote control or with a centrally mounted gang switch.

Battery Back Up:
UPS systems are strongly recommended particularly where there is a security roller shutter covering a doorway. These clever battery packs convert 24 volt to 240-volt power in case of power failure and do not enter into sleep mode when power fails, offering complete peace of mind.

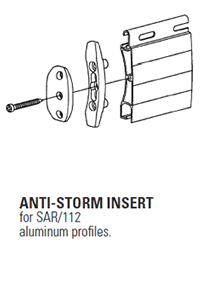

Fixing Systems

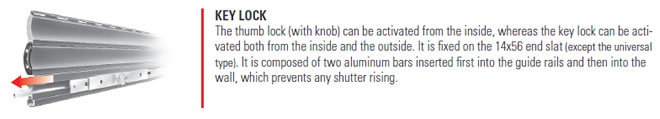

Locking Systems

End Slats

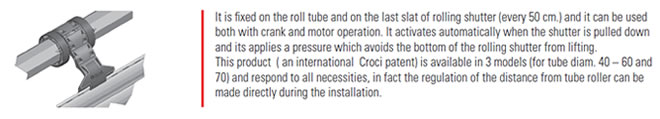

Automatic Anti-Lifting System
